Extendery KVM z portami DisplayPort i USB na kablach CATx
  • EXTENDER KVM Z PORTAMI DISPLAYPORT, USB, AUDIO I RS232 I ZASIĘGIEM 100m


  • FUNKCJONALNOŚĆ

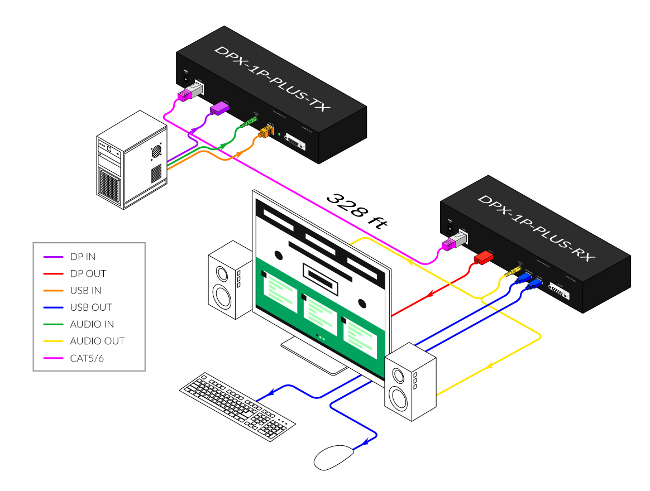

    The DPX-1P-Plus DisplayPort extender is capable of sending a DP signal up to 328 feet (100m) over a conventional and inexpensiveCAT5/5e/6 cable. The technology is superior to standard extenders that require a special CAT6 shielded cable to go a short distance. The DPX-1P-Plus also has USB keyboard and mouse, audio, and RS-232 extension, giving users the ability to control displays or devices remotely.
    • Extend DisplayPort signals up to 328 feet (100m)
    • Data recovery for digital video
    • Supports 1080p (1920x1200 @ 60Hz)
    • Supports up to 4K (3840x2160 @ 30Hz) video resolution
    • Automatic EDID Learning
    • USB Keyboard and Mouse
    • Supports RS-232 extension
    • External power adapter for transmitter and receiver unit
    • Supports SST only (no MST support)
    • Plug-and-play ready



    VIDEO

    Format

    DisplayPort 1.2

    Maximum Pixel Clock

    275 MHz

    Input Interface (TX)

    (1) DP female

    Output Interface (RX)

    (1) DP female

    Resolution

    Up to 4K (3840x2160 @ 30Hz)

    DDC

    via AUX

    Input Equalization

    Automatic

    Input Cable Length

    Up to 15 ft.

    Output Cable Length

    Up to 15 ft.

    AUDIO

    Frequency Responsee

    30KHz to 80KHz

    Input Interface (TX)

    (1) 3.5 mm (Female)

    Output Interface (RX)

    (1) 3.5 mm (Female)

    USB

    Signal Type

    USB 1.1 and USB 2.0 Compatible

    Input Interface (TX)

    (1) USB Type B (Female)

    Output Interface (RX)

    (2) USB Type A (Female)

    RS-232

    Input Interface (TX)

    DB9 (Female)

    Output Interface (RX)

    DB9 (Female)

    Flow Control

    Software up to 115,000 Kbps

    OTHER

    Power

    External 230 VAC/5VDC4A @20W

    Dimensions

    9 in W x 2 in H x 3 in D

    Weight

    1.45 lb per TX/RX unit

    Operating Temp.

    0-55 °C (32-131°F)

    Storage Temp.

    -20-85 °C (-4-185 °F)

    Humidity

    Up to 95%





    Zestawienie oferowanych urządzeń

    Nazwa

    Nr katalogowy

    Instrukcja obsługi

    Karta katalogowa

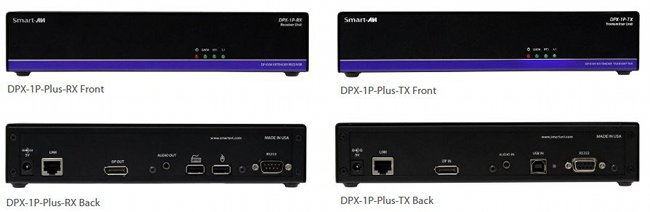

    DisplayPort + USB + RS-232 Extender over CAT5/5e/6
    Includes: [DPX-1P-Plus-TX, DPX-1P-Plus-RX, 2x (PS5VDC4A)]

    DPX-1P-Plus-S

    PDF manual

    Karta katalogowa
