  • EXTENDER KVM Z PORTAMI DVI, USB, AUDIO i IR, ZASIĘG 300m POPRZEZ SIEĆ TCP/IP


  • FUNKCJONALNOŚĆ

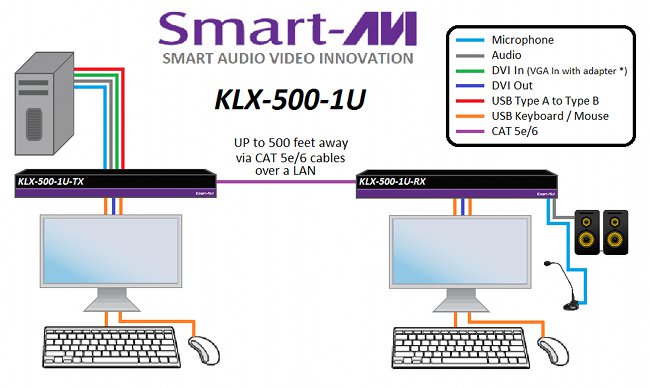

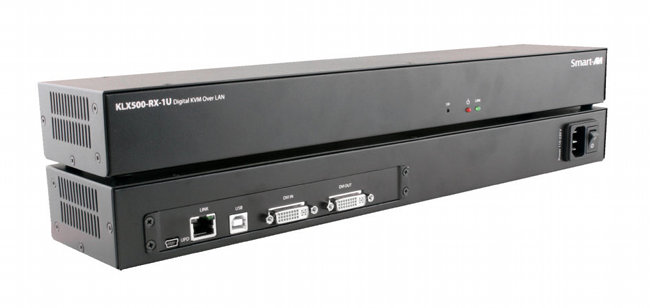

    The KLX-500-1U is an industrial-strength DVI-D with VGA input support and KVM signal extender capable of transmitting 1080p HD video to displays up to 500 feet (150 m) away via CAT 5/5e/6 cables over LAN. The KLX-500-1U also offers full USB keyboard, video, and mouse operation extension for local and remote real-time system management; great for supervising and managing projects from the convenience of your personal workstation.
    KLX-500-1U is plug-and-play ready for easy set-ups, ais plug-and-play ready for easy set-ups, and chainable with other KLX extenders to connect with workstations over 500 feet (150 m) away. A simple yet powerful system enhancing tool for any working environment. Don’t let distance limit your systems: go further with the KLX-500-1U.
    • Extends KVM operation by 500 feet (150 m) via LAN (Cat 5/5e/6 cables)
    • Chainable for thousands of feet (300 m) of extension
    • Supports DVI monitors
    • Supports full USB emulation
    • Audio input and output
    • Supports locale and remote Keyboard, Video, Mouse control operation with KVM devices
    • Supports 1080p up to 1920×1080 resolution at 60Hz
    • Plug-and-Play ready; Industrial enclosure



    VIDEO

    Format

    DVI-D

    HDTV Resolutions

    480p, 720p, 1080i, 1080p/60Hz/48bit

    TV Resolution

    480i

    Input Interface (TX)

    DVI-I, 2 USB Type A Female & 1 USB Type B

    Output Interface (RX)

    DVI-I, 2 USB Type A Female

    Input Cable Length (TX)

    Up to 40 ft. (12 m)

    Output Cable Length (RX)

    Up to 40 ft. (12 m)

    AUDIO

    Format

    Stereo

    Input Interface

    3.5 mm Jack Socket (Female)

    Output Interface

    3.5 mm Jack Socket (Female)

    SYSTEM

    Interface

    RJ-45

    Cable Requirements

    CAT5/5e/6

    Maximum Length

    500 ft. (150m)

    OTHER

    Power

    External 230 VAC

    Dimensions TX & RX

    17.125”W X 3.75”D X 2”H each

    Weight TX & RX

    1.2 lbs. each (0,6 kg each)

    Approvals

    UL, CE, ROHS Compliant

    Operating Temp.

    41 to 122°F (5 to 50 °C )

    Storage Temp.

    32 to 149°F (0 to 65 °C )

    Humidity

    Up to 85% RH (no condensation)





    Zestawienie oferowanych urządzeń

    Nazwa

    Nr katalogowy

    Instrukcja obsługi

    Karta katalogowa

    Industrial DVI, KVM Signal Extender.
    Includes:[KLX-500-1U-TX, KLX-500-1U-RX]

    KLX-500-1U-S

    PDF manual
    Quick Start Guide

    Karta katalogowa
