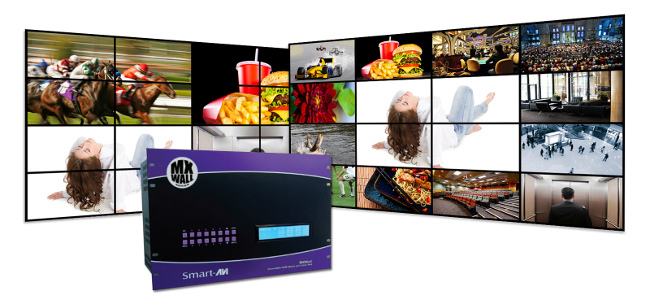

KONTROLER / STEROWNIK ŚCIAN WIDEO
WIELO-MONITOROWYCH HDMI - MXWall
|
 |
FUNKCJONALNOŚĆ

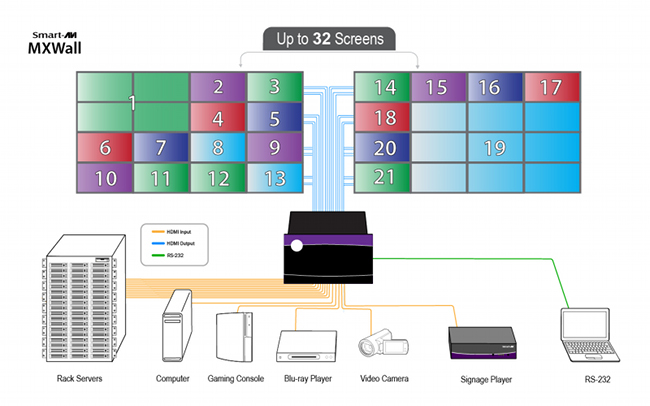

For the ultimate in control over a high definition video matrix, the
new MXWall delivers complete flexibility to route and distribute 32 HD
inputs and 32 HD outputs with video wall functionality. No other video
matrix on the market today provides the unique combination of full
matrix switching with included video wall operation, which offers the
ideal video routing solution for the most demanding of environments and
applications.
-
Expandable to 32 HDMI Inputs and 32 HDMI Outputs
- Full Hardware Solution, No
Operating System Required
- Real Time Image Display, No
Dropped Frames
- Supports Multiple Video Wall
Layouts
- Built-In Digital Signage
Functionality
- Delivers Reliable, “24/7”
Uninterrupted Use
- HDMI 1.4 and HDCP
Compliant
- Output Resolution up to
1920x1080
- Scales Each Input to
1080p
- Supports Partial Input and Output
Cards with Mixed Interpolation
- High-Speed Bus Parallel
Processing Technology and High-Bandwidth Uncompressed
Processing
- Control via Front Panel Buttons,
RS-232 or Ethernet
- User-Friendly GUI
Software
- Supports Open Protocol for
Integration with AMX, Creston
- Android Application
Available
- Integrated Media Player for
Video, Photos and Web Browsing with Local Storage
|
 |
 |
|
VIDEO
|
|
Video Amplifier
Bandwidth
|
3.2G
|
|
Input Video Signal
|
Video (TMDS) 0.5~1.0Vpp
|
|
Input DDC Signal
|
5 volts
|
|
Compliances
|
HDMI 1.4 and HDCP
compliant
|
|
Pixel Rates
|
Clock frequency beyond
165Mpix/second
|
|
Format
|
4:4:4 and 4:2:2 data
input formats
|
|
Resolution
|
480p, 720p, 1080i,
1080p
|
|
Input Card Format
|
HDMI
|
|
Output Card Format
|
HDMI
|
|

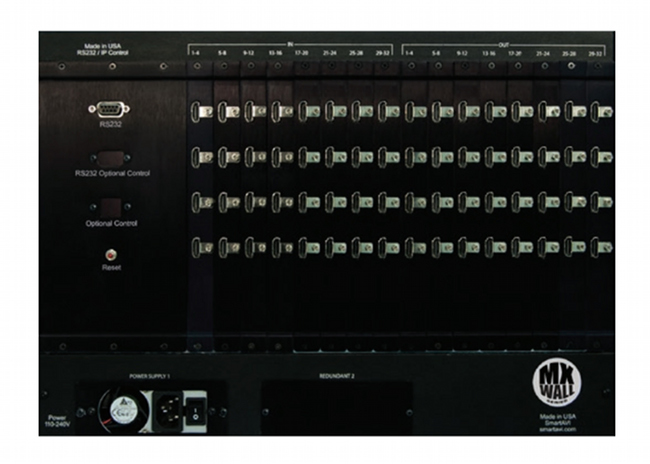

Input Slots
|
Up to 8 cards of 4
HDMI input each
|
|
Output Slots
|
Up to 8 cards of 4
HDMI output each
|
|
Video Type
|
RGB/YCBCR :
24/30/36-bits,YCBCR: 8/10/12/16/20/24-bits
|
|
CONTROL
|
|
Front
|
2x8 keyboard with 4x40
LCD
|
|
RS-232
|
9600bps, Software flow
DB9 Female
|
|
TCP/IP
|
Webserver, Telnet
|
|
OTHER
|
|
Working Temperature
|
0°C~+55°C
|
|
Storage Humidity
|
10%~90%
|
|
Weight
|
30 lbs. (13,6 kg)
|
|
Dimensions
|
17.125 in (W) x 12 in
(H) x 12 in (D)
|
|
Power Supply
|
50/60Hz, 230
VAC
|
|
Consumption
|
300W
|
|
 |
 |
 |
|
Zestawienie
oferowanych urządzeń
|
|
Nazwa
|
Nr katalogowy
|
Instrukcja obsługi
|
Karta katalogowa
|
Film video
|
|
16x16 HDMI Matrix with
Integrated Video Wall.
Includes: [MXWall-1616 & (CCPWR06)]
|
MXWall-1616-S
|
PDF
manual
|
Karta
katalogowa
|
Video
|
|
32x32 HDMI Matrix with
Integrated Video Wall.
Includes: [MXWall-3232 & (CCPWR06)]
|
MXWall-3232-S
|
|
|
|
|
|
