KONTROLER / STEROWNIK ŚCIAN WIDEO
CZTERO-MONITOROWYCH - HDMI
|
 |
FUNKCJONALNOŚĆ

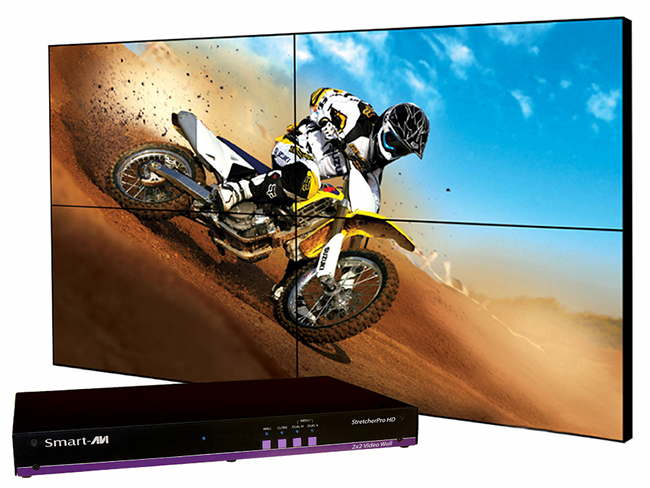

To create a four-screen video wall with 1 HD video input, the
StretcherPro-HD Video Wall Controller providesa truly simple
plug-and-play hardware solution. The StrecherPro-HD is HDCP compliant
and is capable
of stretching any HD source over four screens, resolution up to 1920 x
1080. This powerful new version
stretches the video image in multiple ways including: Video Wall mode,
dual horizontal (2x1), dual
vertical (1x2), or clone the image (1:1).
-
4 Screen Multilayout Digital Signage/Video Wall Controller
- 1 HDMI Input, 4 HDMI
Outputs
- Internal EDID Tables
- Learns any EDID Table
- Resolutions up to 1080p full HD
(1920×1080)
- Flexible Full Video Wall,
Dual-Vertical, Dual-Horizontal, and Clone display modes
- Plug-and-Play; requires no
additional hardware or software
- Multiple units can be linked for
larger wall configurations
- Optional DVI-D Input and Output
with adapter
- Supports IR, RS-232, and Ethernet
control
- Real-time display output
- HDCP Compliant
|
 |
 |
|
VIDEO
|
|
Video Bandwidth
|
Single-link 340MHz
[10.2Gbps]
|
|
Resolution HDTV
|
4480i,480p,720i,720p,1080i,1080p
|
|
PC Resolution
|
Up to 1080p (1920x1080
@ 60Hz)
|
|
Input Video Signal
|
1.2 volts
|
|
Input DDC Signa
|
5 volts
|
|
Single Link Range
|
1080p
|
|
Format
|
HDMI 1.4
|
|
DVI Compliance
|
Single-link DVI-D 2.0
|
|
HDCP Compliance
|
1.0/2.0
|
|
Video Bandwidth
|
Single-link 340MHz
[10.2Gbps]
|
|
Input Interface
|
(1) HDMI
|
|
Output Interface
|
(4) HDMI
|
|
Connector
|
Type A [19-pin female]
|
|
CONTROL
|
|
Front Panel
|
Tact Switch w/OSD
|
|
RS-232
|
DB9 (female)
|
|
Remote
|
IR RC5
|
|
Additional
|
Optional Ethernet
control
|
|
POWER
|
|
Requirements
|
Internal 230
VAC
|
|
Power Supply
Approvals
|
UL, CE, CSA, CEC, RoHS
|
|
MECHANICAL
|
|
Height
|
1.875 in. (1U)
|
|
Width
|
17 in. (431.8 mm.)
|
|
Depth
|
10.2 in. (259 mm.)
|
|
Weight
|
4.05 lbs. (1.84 kg.)
|
|
|
Zestawienie
oferowanych urządzeń
|
|
Nazwa
|
Nr katalogowy
|
Instrukcja obsługi
|
Karta katalogowa
|
Film video
|
|
SretcherPro-HD 2x2
Multi-Layout Video Wall Controller.
Includes: [STRP-HD, RMT-4KWL, SM-EYE-NY, EN-QKVM-EAR-P and CCPWR06]
|
