EXTENDER KVM over IP Z PORTAMI HDMI 4K, USB I IR,
ZASIĘG 120m
|
 |
FUNKCJONALNOŚĆ
Extender
XTENDEX® 4K HDMI USB KVM over IP pozwala wynieść na odległość 120m (400
feet) klawiaturę USB, mysz USB, monitor HDMI, dodatkowe porty USB
komputera oraz port RS232 poprzez sieć Gigabit 1000BASE-T i przy użyciu
kabla CAT5e/6.
Extender składa się z dwóch modułów: lokalnego ST-IPUSB4K-L-VW do
którego dołącza się komputer oraz wyniesionego ST-IPUSB4K-R-VW do
którego dołącza się monitor, mikrofon, głośniki i cztery urządzenia USB
(klawiatura, mysz, flashdrive, HDD lub ekran dotykowy).

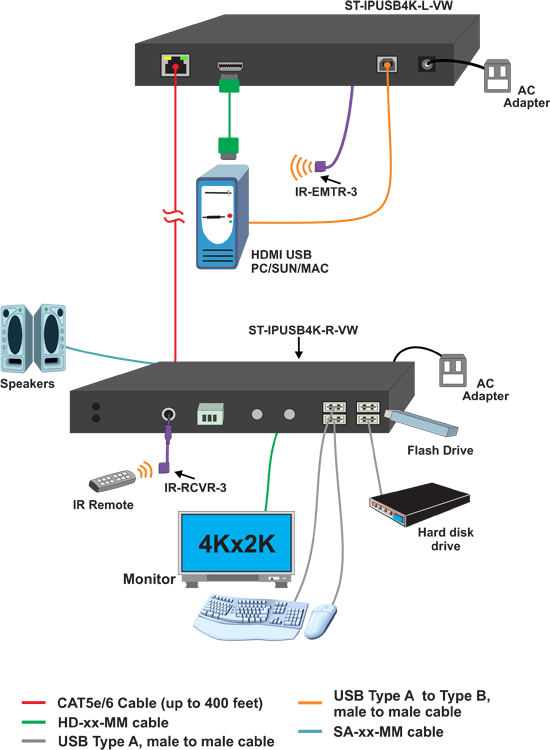

Moduły lokalny i wyniesiony mogą być połączone ze sobą w konfiguracji
"punkt-punkt" poprzez kabel CAT5e/6 lub w konfiguracji

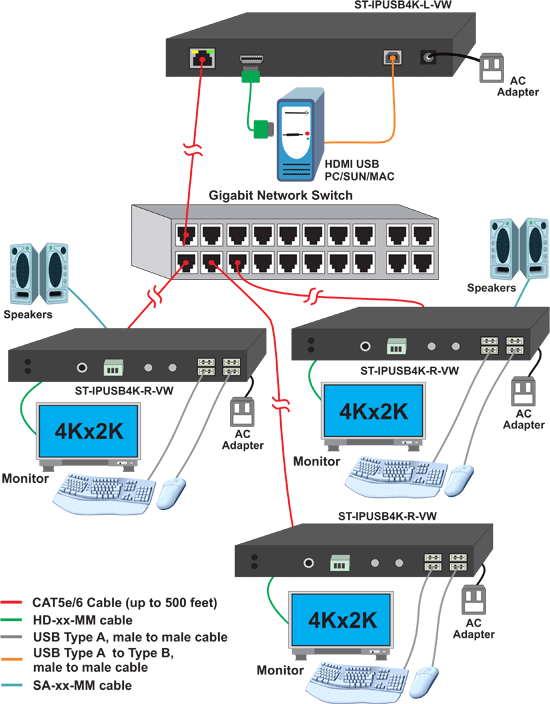

"punkt-wielopunkt" poprzez gigabitowy przełącznik sieciowy. Do obsługi
konfiguracji "punkt-wielopunkt" wymagane jest zastosowanie
zarządzalnego gigabitowego przełącznika sieciowego.
-
Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz), 2K resolution
2048x1080, HDTV resolutions to 1080p, and computer resolutions to
1920x1200.
- Extend 4Kx2K up to 400 feet (122m) in a Point-to-Point connection.
- Extend 4Kx2K up to 1,000 feet (300m) in a Point-to-Point or Point-to-Many connection via a Gigabit network switch.
- The max length between the switch and the local/remote unit is 500 feet (150m).
- HDMI features supported:
- HDMI 1.4
- x.v.Color, sYCC601 color, Adobe RGB Color and Adobe YCC601 color
- Dolby TrueHD, LPCM 7.1, DTS-HD Master Audio, Dolby Digital, and DTS
- Bandwidth up to 340 MHz (10.2 Gbps)
- Lip Sync
- HDCP 1.4 compliant.
- Supports USB 2.0
devices.
- Keyboard and mouse are
hot-pluggable.
- Connect a mouse, keyboard,
flashdrive, HDD or touchscreen display.
- Supports video wall installations
from 1x2 to 8x8 screens.
- Displays can be rotated 90, 180
and 270°.
- Plug-and-Play installation allows
receivers to find the transmitter automatically on the same network.
(Network configuration may be required for managed network
switch.)
- Full Infrared Remote (IR) control
of HDMI source from remote HDTV using existing source remote
control.
- Support for multiple transmitters
requires a managed Gigabit network switch with VLAN/IGMP support.
Standard LAN switches can only support one transmitter.
- Each VLAN acts as a separate HDMI
Over IP Channel on the network.
- When using multiple remote units,
only one unit can have USB control over the source at any
time.
- Manage transmitter/receiver
connections and video wall configuration with built-in
software.
- Supports full-duplex RS232 up to 115200 baud.
- Customizable EDID table on local unit.
- Supports the DDC2B
protocol.
- Easily expandable - add receivers
as you add control stations.
- Integrated mounting brackets for
easy surface/wall mounting.
|
 |
SPECYFIKACJA
TECHNICZNA
Moduł
lokalny
-
Compatible with a USB computer (PC, SUN and MAC) with Ultra-HD HDMI
output.
- Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
- One female HDMI
connector.
- One female USB Type B
connector.
- Two female 3.5mm stereo jacks for
audio out and mic in.
- Microphone only works when in a
point-to-point connection.
- One female 3.5mm port for IR
emitter (sold separately).
- Screw terminal for
RS232.
- One female 1 Gbps RJ45 port for
sending/receiving high definition video/audio, USB and IR signals.
Moduł
wyniesiony
-
One female HDMI connector.
- Four female USB Type A connectors
for keyboard, mouse, flashdrive, HDD, or touchscreen display.
- Two USB 2.0 and two USB
1.1
- Two female 3.5mm stereo jacks for
audio out and mic in.
- Microphone only works when in a
point-to-point connection.
- One female 3.5mm port for IR
receiver (sold separately).
- Screw terminal for
RS232.
- One female 1 Gbps RJ45 port for
sending/receiving high definition video/audio, USB and IR
signals.
- Supported video
resolutions:
- Ultra-HD 4Kx2K resolutions
(3840x2160 @ 30Hz)
- 2K Cinema (2048x1080 @
60Hz)
- HDTV resolutions to
1080p
- Computer resolutions to
1920x1200
- Supports embedded digital audio
through HDMI compatible TVs or audio receivers.
RS232
-
Supports TXD and RXD.
- Baud rate:
9600/14400/19200/38400/57600/115200.
- Support for a touch screen
monitor.
Zasilanie
- Local and remote unit:
- Input: 230 VAC at 50 or
60
Hz via AC adapter. (US AC adapter included.)
- Output: 12VDC, 2A
Wymiary
Wymagania
środowiskowe
- Temperatura
pracy: 0°C do 50°C
- Temperatura
przechowywania: -20°C do 85°C
- Wilgotność
względna pracy i przechowywania: 0 do 80% bez efektu kondensacji
Certyfikaty
- CE, FCC, RoHS
- Zgodność z TAA
Gwarancja
Maksymalny
zasięg
-
400 feet (120m) in a Point-to-Point connection.
- 1,000 feet (300m) in a
Point-to-Point or Point-to-Many connection via a network
switch.
- The max length between the switch
and the local/remote unit is 500 feet (150m).
Kable
- Cables included with local unit:
- One 4.25 ft (1.3 m) male to male HDMI cable.
- One 6 ft (1.8 m) male USB Type A to male USB Type B cable.
- One 5 ft (1.5 m) male to male 3.5mm stereo audio cable.
- One 4 ft (1.2 m) 3-pin screw terminal to female DB9 RS232 cable.
- Cables included with remote unit:
- One 4 ft (1.2 m) 3-pin screw terminal to female DB9 RS232 cable.
- Do połączenia modułów extendera
należy używać kabli CAT5e/6 zakończonych wtykami RJ45
zgodnie z
normą TIA/EIA-568B (kable nie dostarczane w zestawie).
- IR emitter and receiver sold
separately.
|
 |
 |
 |
|
Zestawienie
oferowanych urządzeń
|
|
Nazwa
|
Nr katalogowy
|
Instrukcja obsługi
|
Karta katalogowa
|
|
4K HDMI USB KVM
Extender Over IP with Video Wall Support - local
|
ST-IPUSB4K-L-VW
|
PDF manual
Video-Wall Setup Guide
|
Karta
katalogowa
|
|
4K HDMI USB KVM
Extender Over IP with Video Wall Support - remote
|
ST-IPUSB4K-R-VW
|
|
|
|
|
|
