  • EXTENDER PORTU HDMI Z ZASIĘGIEM 45m NA KABLU CAT6 Z LOKALNYM PORTEM


  • FUNKCJONALNOŚĆ

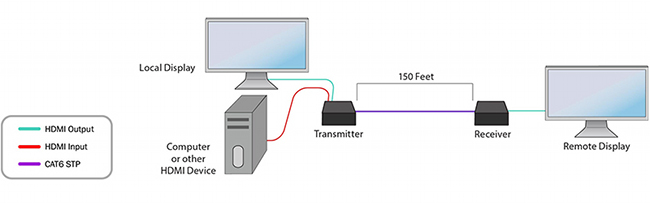

    Smart-AVI’s HDX-100 is an innovative solution to extending any HDMI signal – be it a gaming console, Blueray player, computer, etc. – over inexpensive CAT6 STP cabling up to 150 feet (45m) away to one remote display and one local screen for real-time monitoring of content.

    This is the perfect solution for broadcasting high-definition media easily and inexpensively from a source to display screen for customers to view while keeping the CPU in a remote, secure location such as a computer room or back office of a business. Utilizing the HDX-100, you can monitor what’s being shown to your customers in real-time via a local display as you retain full control over the CPU or HDMI source, accessible only by key personnel.

    The HDX-100 is a compact, dynamic unit that is small and easily integrated into a digital display network such as in a retail store or bar/lounge. The transmitter and receiver units are extremely compact, which makes inclusion into your infrastructure very simple and handy.

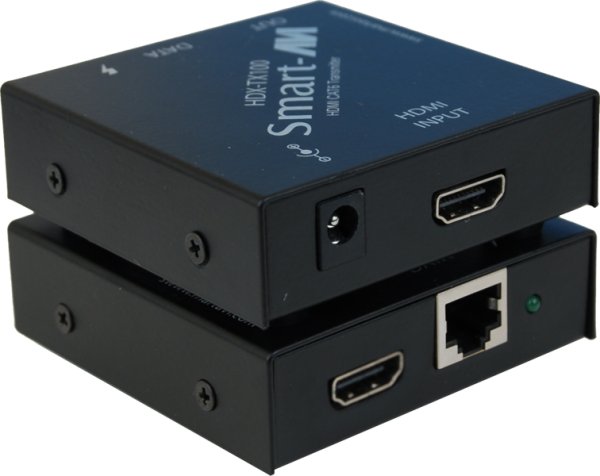

    • Compact Transmitter/Receiver Units
    • Local HDMI Output
    • Perfect Image Quality at all Resolutions (1920 x 1200, 480p, 720i, 720p, 1080i, 1080p)
    • Video Resolutions up to 1920 x 1200 at 60Hz (1280 x 1024 at 75Hz) on all Distances to the Maximum Limit
    • Bandwidth to 1.64Gps
    • Automatic DDC Learning from Local Monitor
    • Unit Operates Regardless of Local Monitor Connectivity
    • Distances up to 150 Feet (45m) using Cat6 STP Cabling
    • Compatible with all Operating Systems
    • Plug-and-Play Ready



    VIDEO

    Format

    HDMI Type A 19 pin (female)

    Input Interface

    (1) HDMI Type A 19 pin (female)
    (1) local HDMI Type A 19 pin (female)

    Output Interface

    (1) HDMI Type A 19 pin (female)

    Resolution

    1920 x 1200@60Hz or
    480p/720i/720p/1080i/1080p

    Color Depth

    36 bit

    SYSTEM

    Input Interface

    (1) RJ-45

    Output Interface

    (1) RJ-45

    OTHER

    Power

    PS5VDC2A

    Dimensions

    2.75”W x 3.875”L x 1”H

    Weight

    0.6 lbs

    Approvals

    UL, CE, ROHS Compliant

    Operating Temperature

    32-131°F (0-55 °C)

    Storage Temperature

    -4-185°F (-20-85 °C)

    Humidity

    Up to 95%





    Zestawienie oferowanych urządzeń

    Nazwa

    Nr katalogowy

    Instrukcja obsługi

    Karta katalogowa

    HDMI Extender over CAT6 up to 150 feet.
    Includes: [HDX-TX100, HDX-RX100 & 2x(PS-PS5VDC2A)]

    HDX-100S

    PDF manual

    Karta katalogowa
