EXTENDER 8 PORTÓW HDMI over IP W
OBUDOWIE RACK 19" Z ZASIĘGIEM 150m
|
 |
FUNKCJONALNOŚĆ

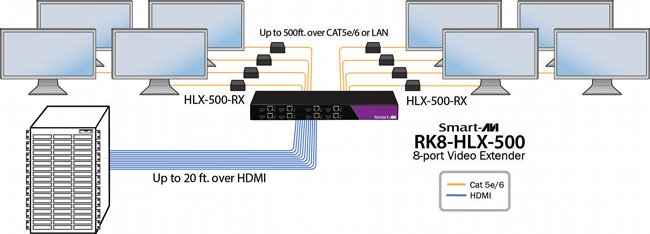

The RK8-HLX-500 is the perfect solution for extending HDMI signals to a remote location up to 500 feet (150 m) away. It is the ideal way to consolidate up to eight workstation computers into one location.

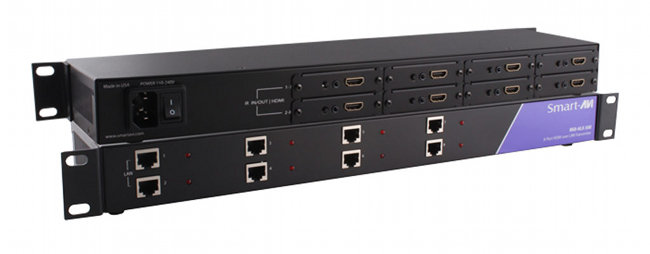

The RK8-HLX-500 is rack-mountable, meaning it can fit into mounting shelves without the need for additional mounting equipment.
It is capable of sending 1080p (1920x1080 @ 60Hz) Full HD HDMI signals to end-point displays in a variety of ranges and applications.
One unit can extend to up to eight displays easily without the additional expense & power-costs of multiple extenders systems, making it the best choice for boosting the range of multiple HDMI source devices.
-
Extends HDMI signals up to 500 feet (150 m) via LAN (Cat5e/6
cables)
- Chainable for thousands of feet
of extension
- Supports up to 8 HDMI sources on
single rack
- Supports high resolution 1080p HD
video, 1920×1080 at 60Hz
- Supports stereo audio
- IR (Infrared) remote
enabled
- Rack mountable
- No software or driver
required
- Plug-and-Play ready
- Distance can be increased if
using ethernet GigaSwitch
|
 |
|
VIDEO
|
|
Format
|
HDMI 1.3 (HDCP compliant)
|
|
Resolution
|
Up to 1080p (1920x1080 @ 60Hz)
|
|
Input Interface
|
(8) HDMI Type A 19-pin (female)
|
|
Output Interface
|
(8) RJ-45 for CAT5/5e/6
|
|
Input Cable Length
|
Up to 40 ft. (12 m)
|
|
Output Cable Length
|
Up to 500 ft. (150 m)
|
|
AUDIO
|
|
Format
|
HDMI (Dolby TrueHD, DTS-HD MA)
|
|
Input Interface
|
HDMI (Integrated)
|
|
Output Interface
|
CAT5/5e/6 via RJ-45
|
|
IR
|
|
Signal Type
|
38 KHz
|
|
Interface
|
3.5 mm Jack Socket
(Female)
|
|
OTHER
|
|
Power
|
230 VAC
|
|
Dimensions
|
17”W x 1.7”H x 4.357”D
|
|
Weight
|
3.6 lbs. (1,7 kg)
|
|
Approvals
|
UL, CE, ROHS Compliant
|
|
Operating Temperature
|
32 - 122° F (0 - 50 °C)
|
|
Storage Temperature
|
-4 - 149 ° F (-20 - 65 °C)
|
|
Humidity
|
Up to 90% (no condensation)
|
|
|
Zestawienie
oferowanych urządzeń
|
|
Nazwa
|
Nr katalogowy
|
Instrukcja obsługi
|
Karta katalogowa
|
|
HDMI & IR 8-Port Rackmount Extender Transmitter over LAN or CAT5/5e/6 Cable.
Includes: [RK8-HLX-500 and CCPWR06]
|
RK8-HLX-500-S
|
PDF manual
|
Karta katalogowa
|
|

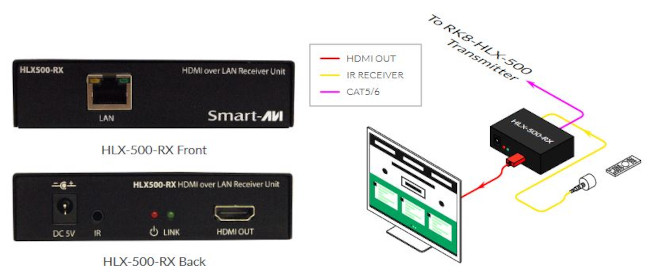

HDMI, IR, RS-232 Point to Point CAT5 Receiver.
Includes: [HLX-RX500, PS5VD2A]
|
HLX-RX500
|
|
|
|
|
|
