  • EXTENDER 8 PORTÓW HDMI W OBUDOWIE RACK 19" Z ZASIĘGIEM 45m NA KABLU CATx


  • FUNKCJONALNOŚĆ

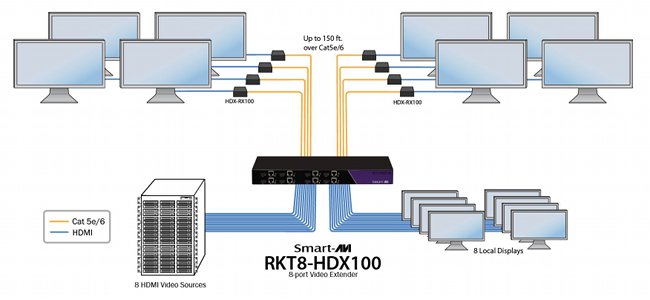

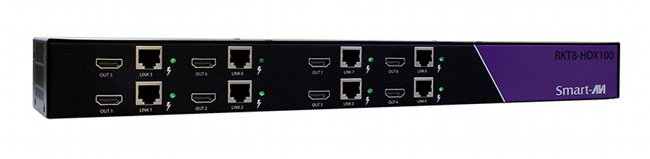

    The RKT8-HDX100 is the perfect solution for extending HDMI signals to a remote location up to 150 feet away. It is the ideal way to consolidate up to eight workstation computers into one location. It is fully compatible with MAC, PC and LINUX HDMI standards. Up to eight displays can be extended easily from a rack without the mess or expense of multiple extenders. Rather than buy multiple extenders for rack components, and having to find power strips or numerous power outlets for the adapters, the SmartAVI rack series of extenders allows for up to eight inputs and eight outputs and one power supply.
    • Supports up to 8 HDMI sources
    • Supports High Resolution 1920×1200 60Hz WUXGA
    • Extends up to 150 feet (45 m) with CAT5e/CAT6 STP cables
    • Zero pixel loss with TMDS signal correction
    • DDC from internal table
    • Compatible with all operating systems
    • Local HDMI output for each port
    • HDMI 1.3 and HDCP compliance
    • Compatible with all major DVD players
    • Rack Mountable Solution
    • Data recovery for digital video
    • Plug-and-play ready
    • Uncompressed Video



    VIDEO

    Format

    HDMI

    Maximum Pixel Clock

    165MHz

    Input

    (8) HDMI

    Local Output

    (8) HDMI

    Remote Outputs

    (8) RJ-45

    Resolution

    Up to 1920 x 1200 @60Hz or
    480p/720i/720p/1080i/1080p

    DDC

    5 volts p-p (TTL)

    Input Equalization

    Automatic

    Input/Output Cable Length

    Up to 20 ft. (6 m)

    OTHER

    Power Internal

    230 VAC

    Dimensions

    17 in W x 1.6 in H x 3.25 in D

    Weight

    5 lbs (2,3 kg)

    Operating Temp.

    0-55 °C (32-131°F)

    Storage Temp.

    -20-85 °C (-4-185 °F)

    Humidity

    Up to 95%






    Zestawienie oferowanych urządzeń

    Nazwa

    Nr katalogowy

    Instrukcja obsługi

    Karta katalogowa

    8-port HDMI Rack Mountable Extender Transmitter over CAT6 STP.
    Includes: [RKT8-HDX100-S & CCPWR06]

    RKT8-HDX100-S

    PDF manual

    Karta katalogowa

    HDMI Receiver over CAT6 up to 150 feet.
    Includes: [HDX-100-RX-S and PS-PS5VDC2A]

    HDX-100-RX-S
