MAGNAT-STRIP:
Power and multimedia strip dedicated to mounting in cable channels of office furniture. It`s a perfect solution in situation where power sockets and multimedia ports might be hidden under the table top/ desk. MAGNAT-STRIP is a product which can be easily adapted to customer`s needs because of the available sizes (from 2 to 9 modules in standard versions). Another advantage of this solution is that wiring is under the table in dedicated cable trays and troughs. Dimensions with two mounting brackets:
* Dimensions above do not apply to configurations with UK sockets nor those without multimedia ports and USB chargers, etc. Dimensions of this type of configurations are available on request. |
 |
|
|
|
TYPES OF POWER SOCKETS:
|
|
 |
UTE sockets outlet (French standard) max. 16A/230VAC.
Maximum power 3680 W. Socket 45° oriented. Protection against accidental contact |
 |
"Schuko" sockets outlet (German standard) max. 16A/230VAC.
Maximum power 3680 W. Socket 45° oriented. Protection against accidental contact |
 |
BS 1363 sockets outlet (UK standard) max. 6A/230VAC.
Maximum power 1380 W. Fuse protection max. 6A. Protection against accidental contact |
 |
Swiss sockets outlet (SEV type 13) max. 10A/230VAC.
Maximum power 2300 W. |
 |
IEC320C13 sockets outlet max. 10A/230VAC.
Maximum power 2300 W. |
 |
IEC320C19 sockets outlet max. 16A/230VAC.
Maximum power 3680 W. |
|
Available colours: white similar to RAL9003 or black similar to RAL9005 or red similar to RAL3002.
Possibility of using different types of power sockets in the same strip. Group of sockets can be supplied from two independent circuits. Each group is coded by different colour of sockets and cable (e.g. white/black sockets for basic circuit, red sockets for circuit supplied from UPS). SUPPLY CABLE: Standard length of the supply cable is up to 5m (longer on request). Cable can be terminated by: - unischuko angled or straight plug max. 16A/230V - IEC320C14 (e.g. for UPS) straight plug max. 10A/230V - IEC320C20 (e.g. for UPS) straight plug max. 16A/230V - Wieland GST18i3 plug max. 16A/230V - Wago Winsta MIDI plug max. 16A/230V - UK plug max. 13A/230V - Swiss plug (SEV type 12) max. 10A/230V - IEC60309 blue 1-phase plug max. 16A/230VAC Power cables can be supplied in coloured cotton braids. |
|
|

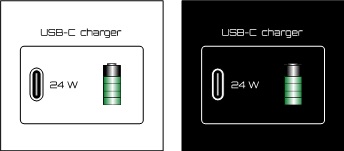

USB CHARGERS:
|
 |
USB charger 5V / 2,1A
(USB type A + USB type A) |
 |
USB charger 5V / 2,1A
(USB type A + USB type C) |
|
DATA RJ45 CATx AND TELEPHONE RJ12 MODULES:
|
 |
One data socket RJ45 cat5e or cat6 UTP/STP
|
 |
Two data sockets RJ45 cat5e or cat6 UTP/STP
|
 |
One telephone socket RJ12
|
 |
Two telephone
sockets RJ12
|
 |
One data socket RJ45
cat5e or cat6 UTP/STP
and one telephone socket RJ12
|
|
USB AND RS232 MODULES: |
 |
One USB 2.0 socket type A
|
 |
Two USB 2.0 sockets type A
|
 |
One USB 3.0 socket type A
|
 |
Two USB 3.0 sockets type A
|
 |
One USB type C socket
|
 |
Two USB type C sockets
|
 |
One socket for serial transmission
RS232 9-pins (DB9) |
|
AUDIO AND VIDEO MODULES: |
 |
One multimedia HDMI socket
|
 |
Two multimedia HDMI sockets
|
 |
Multimedia DisplayPort socket
|
 |
Video VGA 15-pins socket
|
 |
Video VGA
15-pins and audio miniJack 3,5mm stereo sockets
|
 |
Video VGA 15-pins and two
audio miniJack 3,5mm stereo sockets
|
 |
One audio miniJack 3,5mm
stereo socket
|
 |
Two audio miniJack 3,5mm
stereo sockets
|
 |
Video DVI socket
|
 |
Composite video RCA cinch (yellow)
|
 |
Audio stereo 2xRCA cinch (black+red or white+red)
|
 |
Composite video RCA cinch (yellow) and audio stereo 2xRCA cinch (black+red or white+red)
|
 |
S-Video socket
|
 |
S-Video socket and audio stereo 2xRCA cinch (black+red or white+red)
|
 |
Digital audio
stereo RCA
cinch (orange) - S/PDIF
|
 |
YPbPr Component video
3xRCA
cinch (green+blue+red)
|
 |
YPbPr Component video
3xRCA cinch (green+blue+red) and digital audio stereo RCA cinch
(orange) - S/PDIF
|
 |
Audio XLR 3-pin socket
|
 |
One F plug socket
|
 |
Two F plug
sockets
|
|
OTHER MODULES: |
 |
Double pole switch with
light indicator
|
 |
Light indicator
|
 |
Surge arrester -
protection against overvoltage
|
 |
RFI noise filter
|
 |
AC ammeter with 3 digits
LED display
|
 |
"Master-slave" function
module to switch off standby devices
|
 |
Custom pushbutton
|
