PRZEŁĄCZNIK TERMINALI Z PORTAMI SZEREGOWYMI
|
|
FUNKCJONALNOŚĆ

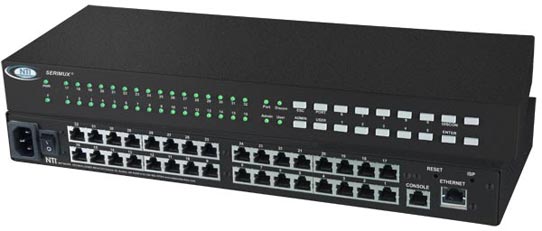

The SERIMUX® Console Switch gives IT managers the ability to cost
effectively manage serial devices, including servers, switches,
routers, and telecom gear. The switch can be controlled via an ASCII
terminal with menu-driven integrated software, the front panel keypad,
or optional Ethernet interface.
-
Eliminates the need to connect each device to an ASCII terminal or
PC.
- Connect up to 32 devices with
different baud rates, parity, and character length. Each switch also
has one RJ45 connector for a local terminal.
- Provides out-of-band access to
network devices (servers, routers, network switches, and any other
network devices allowing console operation using RS232).
- Power cycle without halting SUN
host computer.
- No inadvertent "break" signals
are generated to cause unintentional rebooting of SUN
computers.
- Dual power option creates a
redundant power system protecting the console switch from any power
failure issues.
- High quality, rugged steel
construction with durable powder coat finish.
- Command Line Interface via Telnet
for advanced management functions.
- Connects to console serial ports
using standard CAT5/5e/6 cables and cable adapters.
- Maximum cable length is 100 feet
(30 meters).
- Two operator levels
(administrator and user).
- Switching is simplified with
programmable device names and menu-driven device selection.
- All configuration parameters are
stored in non-volatile EEPROM.
- Built-in data buffers save the
most recent RS232 console output from each connected device, which
simplifies troubleshooting failures.
- Local commands can be directed
via VT52, VT100, ANSI serial console, a PC with a terminal emulation
program, or any compliant terminal.
- Gain access to servers without
interrupting service to end-users; maintain optimal up-time.
- Manage server farms or data
centers via serial ports and standard external modems or through
optional Ethernet interface using Telnet or Web interface.
- 1RU rackmount case is standard.
|
|
SPECYFIKACJA
TECHNICZNA
Compatibility
-
Supports most devices with an RS232 serial port
Serial
Interface
-
4, 8, 16, 24 or 32 RJ45 EIA-232 serial port connectors.
- One RJ45 EIA-232 console port
connector.
- Flow control: Hardware (RTS/CTS),
Software (XON, XOFF), both or none.
- Signals: TXD, RXD, DSR, DTR, CTS,
RTS, DCD
- Data transfer rate: up to 115.2K
baud between two ports.
- Two ports can be at different
baud rates.
Network
Interface (Optional)
-
10/100 BaseT Ethernet port with RJ45 connector.
- Supports static and dynamic IP
addresses.
Zasilanie
-
Input Voltage: AC 230V, 50 - 60 Hz
- Optional dual power available on
all models.
Power Consumption
|
Model
|
Power (W)
|
Model
|
Power (W)
|
4-port
|
5
|
24-port
|
10
|
8-port
|
5
|
32-port
|
10
|
16-port
|
10
|
|
Adapters
-
Four cable adapters are included with the SERIMUX
- DB-25F to RJ45 console
adapter.
- DB-9F to RJ45 console
adapter.
- DB-25M to RJ45 console
adapter.
- DB-25M to RJ45 modem adapter
- Additional adapters
available
Protocols
(For Optional Ethernet Control)
-
HTTP, HTTPS, ICMP, DHCP.
- TCP/IP, SSL, Telnet.
Wymiary
Console Serial Port
Switches (without supplied rackmount kit)
|
Nr katalogowy
|
Desktop Size
WxDxH (in.)
|
Nr katalogowy
|
Desktop Size
WxDxH (in.)
|
SERIMUX-CS-4
|
9x6x1.75
|
SERIMUX-CS-8
|
15.3x6x1.75
|
SERIMUX-CS-8E
|
15.3x6x1.75
|
SERIMUX-CS-16
|
15.3x6x1.75
|
SERIMUX-CS-16E
|
15.3x6x1.75
|
SERIMUX-CS-16EDP
|
16.2x6x1.75
|
SERIMUX-CS-24E
|
15.3x6x1.75
|
SERIMUX-CS-24EDP
|
16.2x6x1.75
|
SERIMUX-CS-32EDP
|
16.2x6x1.75
|
|
|
Wymagania
środowiskowe
- Temperatura pracy: 0°C
do 38°C
- Temperatura przechowywania: -30°C
do 60°C
- Wilgotność względna pracy i
przechowywania: 17 do 90% bez efektu kondensacji
Certyfikaty
MTBF
MTBF
|
Nr katalogowy
|
MTBF (h)
|
Nr katalogowy
|
MTBF (h)
|
SERIMUX-CS-4
|
57,847
|
SERIMUX-CS-8
|
54,652
|
SERIMUX-CS-8E
|
48,506
|
SERIMUX-CS-16
|
53,238
|
SERIMUX-CS-16E
|
47,383
|
SERIMUX-CS-16EDP
|
47,280
|
SERIMUX-CS-24E
|
45,045
|
SERIMUX-CS-24EDP
|
44,959
|
SERIMUX-CS-32EDP
|
43,304
|
|
|
Gwarancja
|
DB9F-RJ45F
-
Adapter to connect DB-9M serial ports to a SERIMUX console switch.
|
DB25F-RJ45F
-
Adapter to connect DB-25M serial ports to a SERIMUX console switch.
|
DB25M-RJ45F-T
-
Adapter to connect DB-25F serial ports to a SERIMUX console switch.
|
DB25M-RJ45F-C
-
Adapter to connect a modem to a SERIMUX console switch.
|
RJ45MF-RS232-CO
-
For connecting two like serial devices (DCE or DTE) directly; output of
one to input of the other.
- Connect SUN/Cisco equipment to a
SERIMUX console switch.
- Serial RS232 crossover using a
male RJ45 connector on one end and a female RJ45 connector on the other
(Male to Female)
- 8P8C;
- Cable Length: 6"
|
|
|
Control
Methods
-
Front panel keypad.
- Secured by a user-defined numeric
password.
- Menu-driven integrated software
via serial terminal console.
- Optional Ethernet
Control.
Command
Line Interface
-
Remote administration and maintenance of the SERIMUX Console Serial
Port Switch.
- Execute frequently performed
configuration tasks through script files.
- Save the configuration of the
switch, and perform configuration restoration if needed.
- Restore default configuration
parameters to specific parts of the switch, while leaving other custom
configuration parameters intact.
Administrative
Controls
-
View and/or modify port parameters.
- View and/or modify user passwords
and parameters.
- Restore default configuration
parameters.
- Connect or disconnect port
connections.
- Change/disconnect users,
administrators, passwords, etc.
- Initiate modem connection to
local ports.
- Inspect buffered data.
- View/delete port-buffer
(data-log) contents.
- User passwords become "invisible"
while viewing the buffers.
|
Optional
Ethernet Control for the Console Serial Port Switch
Web
Interface
SSL (Secure Sockets Layer) is a popular way to encrypt information over
the Internet. Websites use SSL to create an encrypted channel allowing
the user to send and receive data securely.
With the Ethernet Option on the SERIMUX® Console Serial Port Switch,
this secure channel is used to configure the console switch via the
SERIMUX Web Interface (view
product demo)
.
Using the website, a remote user can manage ports and users, clear the
Port Buffer, create and initiate modem connections, and other
administrative tasks safely and conveniently.
The Telnet feature of the SERIMUX Web Interface requires the latest
version of JAVA™.
Ethernet Control
-
Optional control method. Available on all models.
- Female RJ45 connector.
- 10/100 BaseT Ethernet
interface.
- Supported protocols: HTTP, HTTPS,
Telnet, SSL.
- Configuration and control can be
done over the Internet via Web Interface or Telnet.
Features
-
Web Interface for switch configuration and connecting to Console Serial
Ports.
- Connect to the Command Line
Interface or Console Serial Ports via Telnet clients such as
HyperTerminal, Tera Term, PuTTY, PuTTYtel, etc.
- Perform configuration tasks
available through the Command Line Interface.
- Execute frequently performed
configuration tasks through script files.
- Save the configuration of the
switch, and perform configuration restoration if needed.
- Restore default configuration
parameters to specific parts of the switch, while leaving other custom
configuration parameters intact.
Command
Line Interface (CLI)
-
Display and configure port parameters, connect/disconnect ports, clear
port buffer, view/modify user list/settings, configure telnet base
port, update firmware, and more.
- Only one user at a time with
administrative privileges can access the SERIMUX via Telnet.
- Commands are keyword based,
nested in a hierarchical format.
- The CLI may be accessed via
Telnet port 23.
- Command autocompletion can be
accessed by typing a partial command, and then pressing the TAB key
once.
- Context sensitive help can be
accessed by pressing the TAB key twice.
|
|
Zestawienie
oferowanych urządzeń
|
Nazwa
|
Nr katalogowy
|
Instrukcja
obsługi
|
Karta katalogowa
|
Console Serial Port
Switches
4-port console serial port switch
|
SERIMUX-CS-4
|
PDF
manual
|
Karta
katalogowa
|
Console Serial Port
Switches
8-port console serial port switch
|
SERIMUX-CS-8
|
Console Serial Port
Switches
8-port console serial port switch, Ethernet control
|
SERIMUX-CS-8E
|
Console Serial Port
Switches
16-port console serial port switch
|
SERIMUX-CS-16
|
Console Serial Port
Switches
16-port console serial port switch, Ethernet control
|
SERIMUX-CS-16E
|
Console Serial Port
Switches
16-port console serial port switch, Ethernet control, dual power
|
SERIMUX-CS-16EDP
|
Console Serial Port
Switches
24-port console serial port switch, Ethernet control
|
SERIMUX-CS-24E
|
Console Serial Port
Switches
24-port console serial port switch, Ethernet control, dual power
|
SERIMUX-CS-24EDP
|
Console Serial Port
Switches
32-port console serial port switch, Ethernet control, dual power
|
SERIMUX-CS-32EDP
|
Adapt a modem to the
SERIMUX
|
DB25M-RJ45F-C
|
Adapt DB-9M serial
ports to the SERIMUX
|
DB9F-RJ45F
|
Adapt DB-25F serial
ports to the SERIMUX
|
DB25M-RJ45F-T
|
Adapt DB-25M serial
ports to the SERIMUX
|
DB25F-RJ45F
|
Adapter to connect
SUN/Cisco RJ45 serial ports to the SERIMUX
|
RJ45MF-RS232-CO
|
|
|
|
|
