VIDEO PRZEŁĄCZNIK Z PORTAMI 2 x HDMI I WYNIESIONYM MONITOREM DO 30m NA KABLU CAT6

FUNKCJONALNOŚĆ
The VIDMUX® Low-Cost 2-Port HDMI Switch with Direct HDMI In and CAT6 Out enables one HDMI display to be switched between two HDMI video sources. It is capable of connecting to two HDMI video sources directly and one video display via the receiver with a maximum extension of 100 feet from the switch using CAT6 cable.

Supports HDTV resolutions to 1080p.
Passes HDMI audio.
Eliminates redundant video displays.
HDMI features:

12-bit Deep Color

Bandwidth up to 225 MHz

Compliant with HDMI 1.3, HDCP 1.1, and DVI 1.1 standards.
Built-in EDID table.
Manually change inputs from the front panel of the switch.

SPECYFIKACJA TECHNICZNA

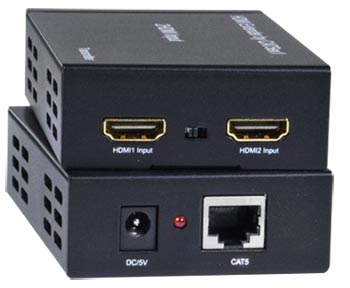

Local Unit (Switch)

Two female HDMI input connectors.
One female RJ45 jack for sending high definition video signals.

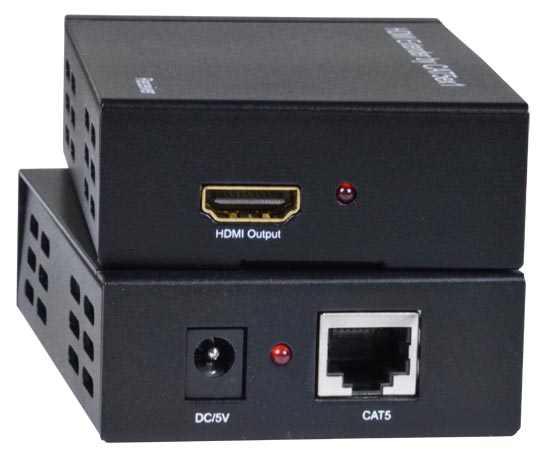

Remote Unit (Receiver)

Supports HDTV resolutions to 1080p.
One female HDMI output connector.
One female RJ45 jack for receiving high definition video signals.

Zasilanie

100 to 240 VAC at 50 or 60 Hz via AC adapter.

Wymiary

WxDxH (in): 3.94x2.56x0.98 (100x65x25 mm).

Wymagania środowiskowe

Temperatura pracy: 0°C do 40°C
Temperatura przechowywania: -20°C do 60°C
Wilgotność względna pracy i przechowywania: 20 do 90% bez efektu kondensacji

Kable

Use HD-xx-MM cable to connect an HDMI source or display.
Use DVI-HD-xx-MM to connect a DVI source or display.
Use CAT6 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).

Certyfikaty

CE, FCC, RoHS

Gwarancja

Dwa lata

Package Includes

One HDMI switch
One HDMI receiver
One power supply
User manual

Zestawienie oferowanych urządzeń
Nazwa	Nr katalogowy
2-port HDMI Switch with Direct HDMI In & CAT6 Out, Extend to 100 ft, Receiver Included	SE-C6HDR-2

HDMI Male-Male Cable
Nr katalogowy	Długość
HD-3-MM	0,9m (3 feet)
HD-6-MM	1,8m (6 feet)
HD-9-MM	2,7m (9 feet)
HD-14-MM	4,2m (14 feet)
HD-20-MM	6,0m (20 feet)
HD-30-MM	9,0m (30 feet)

Kabel z wtykami: "męskim" DVI-D i "męskim" HDMI-A
Nr katalogowy	Długość
DVI-HD-3-MM	0,9m (3 feet)
DVI-HD-6-MM	1,8m (6 feet)
DVI-HD-10-MM	3,0m (10 feet)
DVI-HD-15-MM	4,5m (15 feet)
