EXTENDER KVM Z PORTAMI DVI, USB, AUDIO i IR, ZASIĘG
300m POPRZEZ SIEĆ TCP/IP (DUO)
|
 |
FUNKCJONALNOŚĆ

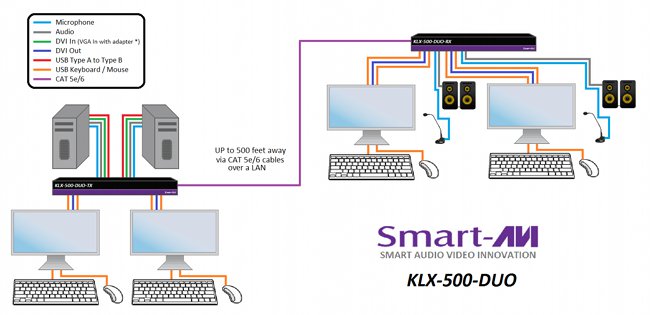

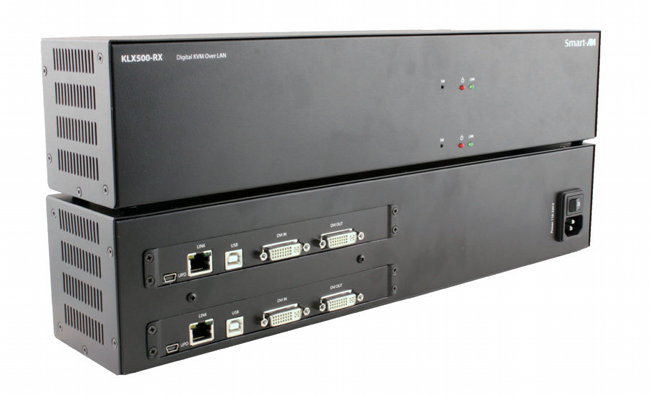

The KLX-500-Duo is an industrial-strength dual-port DVI-D with VGA
support and KVM signal extender. Capable of transmitting 1080p HD video
to two displays up to 500 feet (150 m) away via CAT 5/5e/6 cables over
LAN, the KLX-500-Duo also allows dual keyboard-mouse operation
extension for local and remote real-time system management; great for
supervising and managing projects from the convenience of your personal
workstation.
KLX-500-Duo is plug-and-play ready for easy set-ups, and chainable with
other KLX extenders to connect with workstations over 500 feet (150 m)
away. The KLX-500-Duo is great for consolidating space and workflow
alike, so don’t let distance limit your systems: go further with the
KLX-500-Duo.
-
Extends KVM operation by 500 feet (150 m) via LAN (Cat 5/5e/6
cables)
- Chainable for thousands of feet
(300 m) of extension
- Supports 2 DVI monitors
simultaneously
- Supports full USB
emulation
- Two audio inputs and outputs
- Supports locale and remote
Keyboard, Video, Mouse control operation with KVM devices
- Supports 1080p up to 1920×1080
resolution at 60Hz
- Plug-and-Play ready; Industrial
enclosure
|
 |
|
VIDEO
|
|
Format
|
DVI-D
|
|
HDTV Resolutions
|
480p, 720p, 1080i,
1080p/60Hz/48bit
|
|
TV Resolution
|
480i
|
|
Input Interface (TX)
|
DVI-I, 4 USB Type A
Female & 2 USB
Type B
|
|
Output Interface (RX)
|
DVI-I, 4 USB Type A
Female
|
|
Input Cable Length (TX)
|
Up to 40 ft. (12 m)
|
|
Output Cable Length
(RX)
|
Up to 40 ft. (12 m)
|
|
AUDIO
|
|
Format
|
Stereo
|
|
Input Interface
|
3.5 mm Jack Socket
(Female)
|
|
Output Interface
|
3.5 mm Jack Socket
(Female)
|
|
SYSTEM
|
|
Interface
|
RJ-45
|
|
Cable
Requirements
|
CAT5/5e/6
|
|
Maximum Length
|
500 ft. (150m)
|
|
OTHER
|
|
Power
|
External 230
VAC
|
|
Dimensions TX
& RX
|
17.125”W X 3.75”D X
4”H each
|
|
Weight TX & RX
|
2.5 lbs. each (1,2 kg
each)
|
|
Approvals
|
UL, CE, ROHS Compliant
|
|
Operating Temp.
|
41 to 122°F (5 to 50
°C )
|
|
Storage Temp.
|
32 to 149°F (0 to 65
°C )
|
|
Humidity
|
Up to 85% RH (no
condensation)
|
|
|
Zestawienie
oferowanych urządzeń
|
|
Nazwa
|
Nr katalogowy
|
Instrukcja obsługi
|
Karta katalogowa
|
|
Industrial Dual-Port
DVI, KVM Extender.
Includes:[KLX-500-DUO-TX, KLX-500-DUO-RX]
|
KLX-500-DUO-S
|
PDF manual
Quick Start Guide
|
Karta
katalogowa
|
|
|
|
|
|
