EXTENDER PORTU HDMI I IR BEZ KOMPRESJI Z ZASIĘGIEM 75m
|
FUNKCJONALNOŚĆ

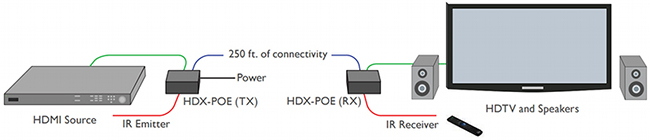

Are you extending your HD signal reach and finding that the best
potential new locations don’t have the proper power available? You may
not have to scale down your plans if you consider using an HDX-POE
system from SmartAVI. HDX-POE injects power
into HDBaseT cat5/cat6 cable that transports both HDMI and IR and picks
it off at the load.
- Supports POE: Can be powered by
TX or RX
- Extends HDMI,IR and Power Output over one Cat5/5e/6 Cable
- Extends IR Control Signals for
Remote Control
- Uses HDBaseT Technology
- Full HD support: 1080p@60Hz@48
bit/pixels, 1080p@120Hz@24 bit/pixels, 3D 1080P60Hz and 4K x
2K@30Hz@24bit
- Data Signals up to
3.4Gbps
- HDMI 1.4 and HDCP
Compliance
- Uses Bi-Directional IR
Communication
- Transmits High-Quality Dolby
TrueHD, DTS-HD MA Audio Signals
- Transmits 1080p Resolution Video
up to 250 ft (75m)
|
 |
|
VIDEO
|
|
Resolution
|
800X600, 1024X768 ,
1280X1024, 1366X768, 1920X1200,
480i, 720p, 1080i, 1080p and 3D
|
|
Transmission distance
|
70 meters
|
|
Color Depth
|
Deep Color 36/30/24
Bit at 1080p and 3D
|
|
Audio Format
|
Up to PCM 8 channel,
Dolby Digital
TrueHD,
and DTS-HD Master Audio
|
|
IR Range
|
38kHz, 56kHz
|
|
Video Bandwidth
|
10.2Gbps
|
|
Input Video Signal
|
1.2 Volts P-P
|
|
Input DDC Signal
|
5Volts p-p (TTL)
|
|

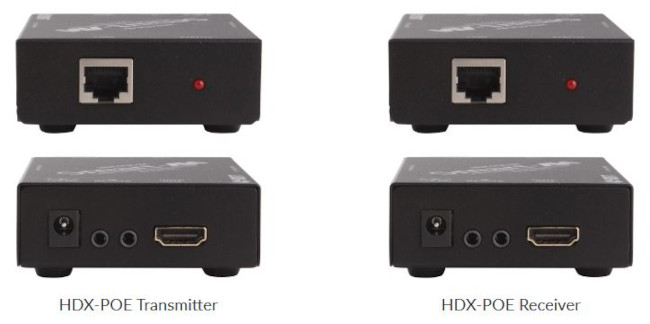

I/O
CONNECTOR (Transmitter)
|
|
Input
|
1x HDMI-A 19PIN Socket
5 x 2.5mm
1x 3.5mm Jack for IR Receiver
|
|
Output
|
1x RJ45 Jack
1x 3.5mm Jack for IR Emitter
|
|
I/O
CONNECTOR (Receiver)
|
|
Input
|
1x RJ45 Jack
1x 3.5mm Jack for IR Receiver
5 x 2.5mm
|
|
Output
|
1x 3.5mm Jack for IR
Emitter
1x HDMI-A 19PIN Socket
|
|
MECHANICAL
- Transmitter/Reciever
|
|
Dimensions (H-W-D)
|
0.9” x 2.9” x 3.7”
|
|
Weight
|
0.26 lbs (0,12 kg)
|
|
Power
|
External 12V2.5A
|
|
ENVIRONMENTAL
|
|
Operating Temperature
|
+0 to +40° C (+32° to
104° F)
|
|
Operating Humidity
|
10% to 85%
(Non-condensing)
|
|
Storage Temperature
|
-20° to +60°C (-4° to
+140° F)
|
|
SAFETY
|
|
Certificate
|
FCC, CE, RoHS
|
|
Power Adapter
|
UL, CE, FCC, RoHS
|
|
 |
|
Zestawienie
oferowanych urządzeń
|
|
Nazwa
|
Nr katalogowy
|
Instrukcja obsługi
|
Karta katalogowa
|
Video prezentacja
|
|
HDMI & IR Extender over a Single Cat5/5e/6 Cable
Includes: [HDX-POE-TX, HDX-POE-RX and (PS12V2.5A and Wall Mount)]
|
