FUNKCJONALNOŚĆ

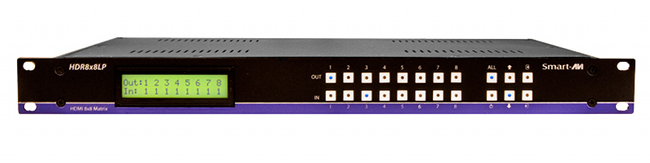

The HDR8X8LP enables routing of any
eight HDMI video sources to any combination of eight video displays.
The matrix
configuration provides maximum flexibility, allowing switching between
any high definition source and display, all with a more
compact design than other units of the same configuration on the market
today. The HDR8X8LP provides HDMI output up to
40 feet and at HDTV resolutions of 480p, 720p, 1080i and 1080p. The
matrix works with Blu-ray players, PCs, cable and satellite
boxes, and any other device with an HDMI output.

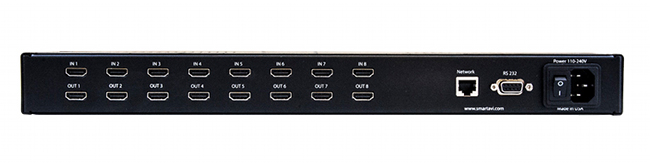

Users can switch to any source locally or via a RS-232 connection. The
matrix is controlled by Windows®-based software that is
easy to understand and simple to use – a cornerstone of all SmartAVI
products.
-
Sources can be routed independently to displays
- Switching controlled via the
front panel, RS-232 and optional Internet control
- Supports high definition video
resolutions of 480p, 720p, 1080i and 1080p
- Supports 7.1 Digital Surround
Sound Audio
- HDCP and HDMI 1.4
compliant
- Supports EDID for total control
of compliant displays
- Delivers uncompressed digital
video with zero signal loss
- Outputs HDMI up to 40
feet
- Rack mountable
