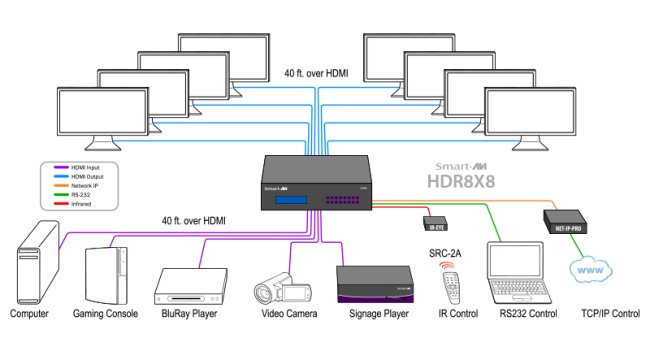

The HDR8X8 conforms to the HDMI (High
Definition Media Interface) standard and provides a connection to view
any eight HDMI video sources on any combination of eight video
displays. The matrix configuration provides maximum flexibility,
allowing switching between any high-definition source and/or display.
The SmartAVI HDMI Router 8x8 provides HDMI output up to 40 feet and at
HDTV resolutions of 480p, 720p, 1080i and 1080p. The system works with
HD-DVD players, TiVo systems, HT PCs, and satellite set-top boxes that
connect to an HDMI display. And users can switch to any source locally
or remotely via a RS-232, IR, USB or TCP/IP connection. Our HDMI router
is controlled by Windows®-based software that is easy to understand and
simple to use – a cornerstone of all SmartAVI products.
-
Switches 8 HDMI inputs with 8 HDMI outputs
- Sources can be routed
independently to displays
- Switching controlled via the
front panel, RS-232, IR, USB and TCP/IP
- Supports high definition video
resolutions of 480p, 720p, 1080i and 1080p
- Supports 7.1 Digital Surround
Sound Audio
- HDCP and HDMI 1.4
compliant
- Supports EDID for total control
of compliant displays
- Delivers uncompressed digital
video with zero signal loss
- Outputs HDMI up to 40
feet
- Rack-mountable
