EXTENDER
PORTU HDMI BEZ KOMPRESJI (HDBase-T), RS232 I IR Z ZASIĘGIEM
135m
|
 |
FUNKCJONALNOŚĆ

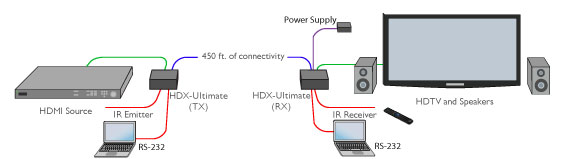

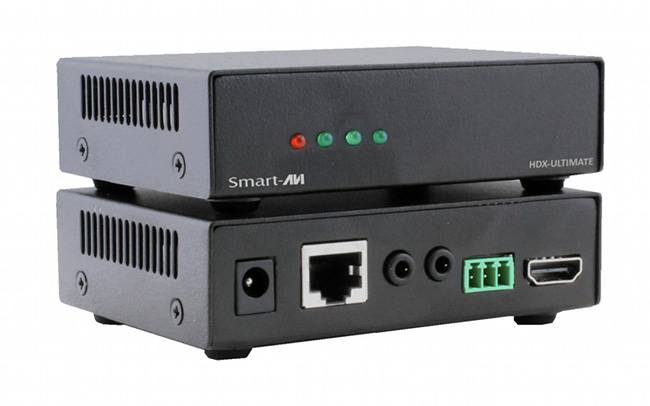

The HDX-Ultimate uses only one CAT5e cable to extend 4K HDMI signals
hundreds of feet from their source. The Ultimate’sHDBaseT technology is
HDTV-ready and PoE, ensuring peak performance even when transmitting
ultra-high quality picture
resolution. The HDX-Ultimate is a crucial extender for any system, and
works in tandem with SmartAVI matrixes for robust routing
configurations. Control and extend setups up to 300 ft (90m) per side,
and
450 ft (135m) when both are powered. Plus, with RS-232 and IR
remote control, taking command is convenient and easy every time!
Whether it’s for a home entertainment system or a commercial
installation, the HDX-Ultimate delivers flexibility and control. Don’t
let the distance bring your system down: let the HDX-Ultimate extend
your reach today!
- Supports PoE: can be powered by
TX or RX
- Cat5e/6 extends signals over
450ft (135m)
- (1) HDMI output for HDTV support
- Supports 1080p/60fps and 4K/30Hz
resolution
- Up to 10.2 Gbps ultra-high
bandwidth
- HDCP compliant; EDID learning
- Bi-directional IR and RS-232
control
- LED status indicators
- Rack optional
|
 |
|
INPUT/OUTPUT
|
|
Video Format
|
HDMI 1.3 and HDCP
compliant
|
|
HDTV Resolutions
|
480p, 720p, 1080i,
1080p/60Hz/48bit, 4K/30Hz
|
|
Audio
|
HDMI Digital Audio
|
|
Input Interface
|
RJ-45 for Cat5e/6
|
|
Output Interface
|
HDMI Type, HDBT, IR
Interface, RS-232
|
|
Input Cable Length
|
Up to 450 ft. (135 m)
over
Cat5e/6
|
|
Output Cable Length
|
Up to 20 ft. (6 m) HDMI
|
|
IR
|
|
Signal Type
|
38 KHz
|
|
Interface
|
3.5mm Jack Socket
(Female)
|
|
OTHER
|
|
Power
|
External 230
VAC/12V-3A @30W
|
|
Dimensions
|
5"W x 1.125"H x
4.125"D
|
|
Weight
|
0.6 lbs (0,3 kg)
|
|
Approvals
|
UL, CE, ROHS Compliant
|
|
Operating Temp
|
32-131 F (0-55 C)
|
|
Storage Temp
|
-4-185 F (-20-85 C)
|
|
Humidity
|
Up to 95%
|
|
|
Zestawienie
oferowanych urządzeń
|
|
Nazwa
|
Nr katalogowy
|
Instrukcja obsługi
|
Karta katalogowa
|
|
HDMI, IR, and RS-232 PoE Extender over a Single CAT5e/6 Cable.
Includes: [HDX-ULT-TX, HDX-ULT-RX, and PS12VD2A-WLLMNT]
|
HDX-ULT-S
|
PDF
manual
|
Karta
katalogowa
|
|
|
|
|
|
