KONTROLER / STEROWNIK ŚCIAN WIDEO
CZTERO-MONITOROWYCH - MULTIFORMAT
|
 |
FUNKCJONALNOŚĆ

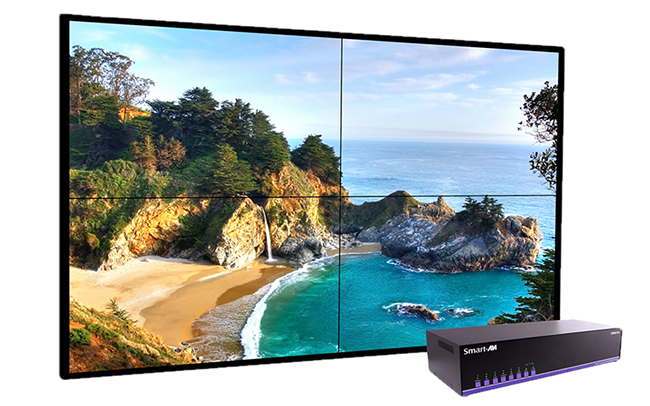

The EZWall-Pro from SmartAVI is the perfect video wall solution for a
wide variety of environments. With four single-link DVIoutputs, users
can create an attractive and dynamic 2x2 video wall display. The
EZWall-Pro includes six different types of video
inputs to ensure it is compatible with as many common video sources as
possible. Inputs include: one HDMI, one VGA, one
S-Video, one Component, and one Y/Pb/Pr. The device also includes a
fully-integrated USB media player, as well. No matter the
format of the video users may want to display, the EZWall-Pro is
clearly the most flexible video wall solution currently available.
The new EZWall-Pro is capable of stretching any HD display over four
screens, while maintaining any resolution up to
1920x1080 on each screen. This powerful new version stretches the video
image in multiple ways, including Wall Mode (2x2)
and Clone Mode (each display showing the same input). Other
configurations include 4x1, 3x1, 2x1 and 1x2.
-
Four Screen (2x2) Multi-Layout, Multi-Format Video Wall
Controller
- Four DVI Single-Link
Outputs
- Inputs: (2) HDMI, (1) VGA, (1)
Composite, (1) Y/
Pb/Pr, (2) USB
- Plays Media via USB port
- Internal EDID Tables
- 1920x1080 Output
Resolution
- No additional hardware or
software required
- Supports Control via Ethernet, IR
and RS-232
- HDCP Compliant
|
 |
 |
|
VIDEO
|
|
DVI Format
|
Single-link
|
|
Output Resolutions
|
Up to 1920x1080 (@60Hz)
|
|
Input Resolutions
|
Up to 1920x1080
|
|
Input Video Signal
|
1.2 volts
|
|
Input DDC Signa
|
5 volts
|
|
Outputs
|
(4) DVI-D; (1)
Composite
|
|
Inputs
|
(2) HDMI, (1) VGA, (1)
Composite, (1) Y/Pb/
Pr, (2) USB 2.0 Type A
|
|
Audio
|
(1) 3.5 mm input, (1)
3.5 mm output
|
|
HDCP Compliance
|
1.0/2.0
|
|
CONTROL
|
|
Front Panel
|
Tact Switches with OSD
|
|
RS-232
|
DB9 (female)
|
|
IR Remote Control
|
SAVI-RMT
|
|
Ethernet
|
RJ-45
|
|
OTHER
|
|
Power
|
230V Internal
|
|
Power Supply
Approvals
|
UL, CE, CSA, CEC, RoHS
|
|
USB MEDIA PLAYER
|
|
Type
|
USB 2.0 Type B
|
|
Video Formats
|
MJPEG, MPEG-1, MPEG-2,
MPEG-4, Vvid, DivX H.264
|
|
Max Resolution
|
1920x1080 @ 30fps
|
|
Max Data Rate
|
20 Mbps
|
|
Audio Formats
|
MP3, WMA, AAC, MP2,
PCM, AC3
|
|
Photos
|
Max resolutions: JPEG
- 15360x8640 BMP - 9600x6400 PNG - 9600x6400
|
|
Other
|
Max TXT resolution:
1200x800
Max ANSI/UNICODE GB/UTF8 file size: 1MB
|
|
MECHANICAL
|
|
Height
|
7.25”
|
|
Width
|
17.06”
|
|
Depth
|
7.25”
|
|
Weight
|
7.3 lbs (3,4 kg)
|
|
 |
 |
|
Zestawienie
oferowanych urządzeń
|
|
Nazwa
|
Nr katalogowy
|
Instrukcja obsługi
|
Karta katalogowa
|
|
Multi-Format Video
Wall Processor.
Includes: [EZW2X2, SAVI-RMT, SM-EYE2 and (CCPWR06)]
|
EZW2X2-S
|
PDF
manual
|
Karta
katalogowa
|
|
|
|
|
|
