KONTROLER / STEROWNIK ŚCIAN WIDEO
DZIEWIĘCIO-MONITOROWYCH - MULTIFORMAT
|
 |
FUNKCJONALNOŚĆ

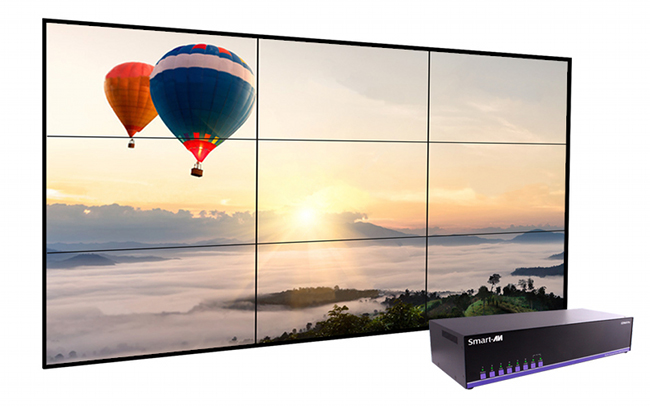

The EZWall-Pro 3x3 V2 from SmartAVI is the perfect video wall solution
for a wide variety of environments. With nine single-link DVI outputs,
users can create an attractive and dynamic 3x3 video wall display. The
EZWall-Pro 3x3 V2 includes several different types of video inputs to
ensure it is compatible with as many common video sources as possible.
Inputs include: three HDMI, one VGA, one USB, RS-232 port and an RJ-45
jack. The device also includes a fully-integrated USB media player, as
well. No matter the format of the video users may want to display, the
EZWall-Pro 3x3 V2 is clearly the most flexible video wall solution
currently available.
The new EZWall-Pro 3x3 V2 is capable of stretching any HD display over
nine screens, while maintaining any resolution up to 1920x1080 on each
screen. This powerful new version stretches the video image in multiple
ways, including Wall Mode (3x3) and Clone Mode (each display showing
the same input).
-
Nine Screen (3x3) Multi-Layout,
Multi-Format Video Wall Controller
- 12 DVI Single-Link Outputs
- Inputs: HDMI, VGA, RS-232
- Supports Playing Media via USB
port
- Internal EDID Tables
- 1920x1080 Output Resolution
- No additional hardware or
software required
- Supports Control via Ethernet, IR
and RS-232
- HDCP Compliant
|
 |
 |
|
VIDEO
& AUDIO
|
|
Output Resolutions
|
Up to 1080P
(1920x1080@60Hz)
|
|
Input Resolutions
|
Up to 1920x1080
|
|
Input Video Signal
|
1.2 volts
|
|
Input DDC Signa
|
5 volts
|
|
Outputs
|
(12) DVI-D
|
|
Inputs
|
(3) HDMI, (1) VGA, (1)
IR, (1) RS-232, (1) USB 2.0 Type A, (1) RJ-45
|
|
Audio
|
(1) 3.5 mm input, (1)
3.5 mm output
|
|
HDCP Compliance
|
1.0/2.0
|
|
CONTROL
|
|
Front Panel
|
Tactile Switches
|
|
RS-232
|
DB9 Female, 9600 bps,
N, 8 1, No flow control
|
|
IR Remote Control
|
EZ‐RMT (NEC 38 KHz)
|
|
TCP/IP
|
RJ-45
|
|
OTHER
|
|
Power
|
230V Internal
|
|
Dimensions
|
17.125” W x 3.625” H x
7.5” D
|
|
Weight
|
7.9 lbs (3,6 kg)
|
|
USB MEDIA PLAYER
|
|
Signal Type
|
USB 2.0, 1.1, and 1.0
(Type A)
|
|
Video Formats
|
MJPEG, MPEG-1, MPEG-2,
MPEG-4, Vvid, DivX H.264
|
|
Max Resolution
|
1920x1080 @ 30fps
|
|
Max Data Rate
|
20 Mbps
|
|
Audio Formats
|
MP3, WMA, AAC, MP2,
PCM, AC3
|
|
Photo Max Resolutions
|
JPEG ‐ 15360x8640, BMP
‐ 9600x6400, PNG ‐ 9600x6400
|
|
Other
|
Max TXT resolution:
1200x800
Max ANSI/UNICODE GB/UTF8 file size: 1MB
|
|
 |
 |
|
Zestawienie
oferowanych urządzeń
|
|
Nazwa
|
Nr katalogowy
|
Instrukcja obsługi
|
Karta katalogowa
|
|
Multi-Format Video
Wall Processor.
Includes: [EZW3X3 and (CCPWR06)]
|
EZW3X3V2-S
|
