Video Wall
  • KONTROLER / STEROWNIK ŚCIAN WIDEO Z FUNKCJĄ PRZEŁĄCZNIKA MATRYCOWEGO


  • FUNKCJONALNOŚĆ

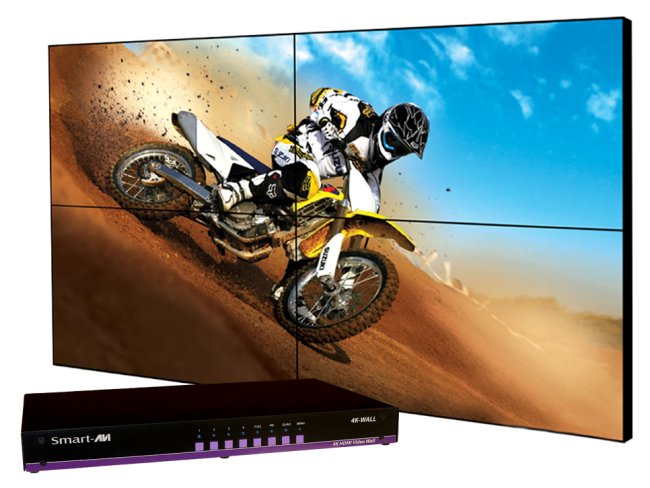

    To create a four-screen video wall with four HD video inputs, the 4K-Wall video wall controller and matrix provides a truly simpleplug-and-play hardware solution with incredible 4K resolution. With four inputs and four outputs, users can arrange their content in numerous ways, providing unique functionality by combining the abilities of a video wall hardware controller and a matrix. The 4K-Wall is HDCP compliant.
    Users can stretch one large ultra-HD image over four screens, send an individual inputs to each screen, send four images to each screen, and create customizable Picture-in-Picture displays. Better still, there’s no software required, as all content management options are effortlessly controlled via the 4K-Wall video wall controller unit itself. There’s no need for drivers or updates, just connect the HD inputs and HD screens to the controller and it’s ready to go.

    • Complete hardware solution – no need for a PC
    • Plug-and-play ready
    • Four HDMI inputs and four HDMI outputs
    • DVI-D (up to 1920x1200 input) with adapter
    • Learns any EDID; adds to database
    • Ethernet control-ready
    • Multiple configurations
    • Easy control and access
    • HDCP and HDMI 1.4 compliant
    • Supports IR and RS-232
    • 4K/2K (3840×2160 @ 60Hz) total (with 1920×1080 monitors) when using full 2×2 video wall mode




    VIDEO

    Video Bandwidth

    Single-link 340MHz [10.2Gbps]

    Resolution HDTV

    480i,480p,720i,720p,1080i,1080p

    PC Resolution

    800 x 600 up to 1920 x 1200

    Input Video Signal

    1.2 volts

    Input DDC Signal

    5 volts

    Single Link Range

    1080p (1920x1080)

    Format

    HDMI 1.4

    DVI Compliance

    Single-link DVI-D 2.0

    HDCP Compliance

    1.0/2.0

    Video Bandwidth

    Single-link 340MHz [10.2Gbps]

    Input Interface

    (4) HDMI

    Output Interface

    (4) HDMI

    Connector

    Type A [19-pin female]

    CONTROL

    Front Panel

    Tact Switch w/OSD

    RS-232

    DB9 (female)

    Remote

    IR RC5

    Additional

    Optional Ethernet Control

    POWER

    Requirements

    Internal 100-240 VAC

    Power Supply Approvals

    UL, CE, CSA, CEC, RoHS

    MECHANICAL

    Height

    1.70 in. (1U)

    Width

    17 in. (431.8 mm.)

    Depth

    10.2 in. (259 mm.)

    Weight

    4.05 lbs. (1.84 kg.)





    Zestawienie oferowanych urządzeń

    Nazwa

    Nr katalogowy

    Instrukcja obsługi

    Karta katalogowa

    Film video

    4X4 Port HDMI, Real-Time Matrix with integrated videowall
    Includes: [SM-4KWL, (CCPWR06)]

    SM-4KWL-S

    PDF manual

    Karta katalogowa

    Video
